Product Details
Application
Industrial
Power
3-6kw
Automatic Grade
Automatic
Driven Type
Electric
BENDING PROCESS Place the plate between bottom and top rolls by adjusting top roll manually. Down the top roll and give pressure on the plate. Then start main motor in clock wise direction till one end of the plate comes over first bottom roll reserve the motors and get second end on second bottom. Continue above process until you ET desired as shown in picture.
Hydraulic Plate Bending Machine Technical Data
| MODEL NO. | Max. Length (mm) |
Maximum Thickness in MM |
Pre Bending Thickness in MM |
Top Roll Dia. In MM |
Side Rolls Dia. In MM |
Power HP |
| 3H-0620 | 2100 | 6 | 4 | 170 | 170 | 5 |
| 3H-0820 | 2100 | 8 | 6 | 200 | 180 | 7.5 |
| 3H-1020 | 2100 | 10 | 8 | 210 | 190 | 7.5 |
| 3H-1320 | 2100 | 13 | 10 | 240 | 210 | 7.5 |
| 3H-1620 | 2100 | 16 | 12 | 280 | 250 | 10 |
| 3H-2020 | 2100 | 20 | 16 | 310 | 280 | 15 |
| 3H-2520 | 2100 | 25 | 20 | 340 | 310 | 20 |
| 3H-3020 | 2100 | 30 | 24 | 370 | 340 | 25 |
| 3H-3220 | 2100 | 32 | 25 | 380 | 350 | 25 |
| 3H-3520 | 2100 | 35 | 28 | 400 | 370 | 25 |
| 3H-4020 | 2100 | 40 | 32 | 420 | 400 | 30 |
| 3H-5020 | 2100 | 50 | 40 | 470 | 430 | 40 |
| 3H-0825 | 2600 | 8 | 6 | 210 | 190 | 7.5 |
| 3H-1025 | 2600 | 10 | 8 | 240 | 210 | 10 |
| 3H-1325 | 2600 | 13 | 10 | 270 | 250 | 12.5 |
| 3H-1625 | 2600 | 16 | 12 | 300 | 280 | 15 |
| 3H-2025 | 2600 | 20 | 15 | 340 | 310 | 20 |
| 3H-2525 | 2600 | 25 | 20 | 370 | 350 | 25 |
| 3H-3025 | 2600 | 30 | 24 | 400 | 370 | 30 |
| 3H-3525 | 2600 | 35 | 28 | 420 | 390 | 30 |
| 3H-4025 | 2600 | 40 | 32 | 440 | 400 | 40 |
| 3H-0630 | 3100 | 6 | 4 | 210 | 200 | 7.5 |
| 3H-0830 | 3100 | 8 | 6 | 240 | 210 | 10 |
| 3H-1030 | 3100 | 10 | 8 | 270 | 250 | 10 |
| 3H-1330 | 3100 | 13 | 10 | 300 | 270 | 15 |
| 3H-1630 | 3100 | 16 | 12 | 330 | 300 | 20 |
| 3H-2030 | 3100 | 20 | 16 | 370 | 340 | 25 |
| 3H-2530 | 3100 | 25 | 20 | 400 | 370 | 30 |
| 3H-3030 | 3100 | 30 | 24 | 430 | 400 | 40 |
| 3H-3530 | 3100 | 35 | 28 | 450 | 420 | 40 |
| 3H-4030 | 3100 | 40 | 32 | 470 | 430 | 50 |
| 3H-5030 | 3100 | 50 | 40 | 510 | 480 | 50 |
Specifications
| MODEL NO. | Working Roll Length | MAX. THICK | MAX. THICK | TOP ROLL | SIDE ROLLS | POWER | Power pack Motor |
| MS | SS | DIAMETER | DIAMETER | HP | HP | ||
| 3HM - 0615 | 1550 | 6 | 4 | 120 | 100 | 5 | 1 |
| 3HM - 1015 | 1550 | 10 | 6 | 160 | 130 | 5 | 1 |
| 3HM - 1215 | 1550 | 12 | 8 | 180 | 150 | 7.5 | 2 |
| 3HM - 1615 | 1550 | 16 | 12 | 200 | 160 | 10 | 3 |
| 3HM - 2015 | 1550 | 20 | 14 | 220 | 180 | 12.5 | 3 |
| 3HM - 2515 | 1550 | 25 | 18 | 240 | 200 | 15 | 3 |
| 3HM - 3015 | 1550 | 30 | 24 | 260 | 225 | 15 | 3 |
| 3HM - 0620 | 2100 | 6 | 4 | 140 | 115 | 5 | 1 |
| 3HM - 1020 | 2100 | 10 | 6 | 180 | 150 | 7.5 | 2 |
| 3HM - 1220 | 2100 | 12 | 8 | 200 | 160 | 10 | 3 |
| 3HM - 1620 | 2100 | 16 | 12 | 220 | 180 | 15 | 3 |
| 3HM - 2020 | 2100 | 20 | 15 | 240 | 200 | 20 | 5 |
| 3HM - 2520 | 2100 | 25 | 18 | 260 | 210 | 20 | 5 |
| 3HM - 3020 | 2100 | 30 | 22 | 300 | 240 | 25 | 5 |
| 3HM - 4020 | 2100 | 40 | 30 | 340 | 280 | 30 | 7.5 |
| 3HM - 5020 | 2100 | 50 | 36 | 380 | 310 | 40 | 10 |
| 3HM - 0625 | 2600 | 6 | 4 | 170 | 140 | 7.5 | 2 |
| 3HM - 1025 | 2600 | 10 | 6 | 200 | 160 | 10 | 3 |
| 3HM - 1225 | 2600 | 12 | 8 | 220 | 180 | 10 | 3 |
| 3HM - 1625 | 2600 | 16 | 12 | 240 | 200 | 15 | 5 |
| 3HM - 2025 | 2600 | 20 | 15 | 280 | 230 | 20 | 5 |
| 3HM - 2525 | 2600 | 25 | 18 | 300 | 240 | 25 | 5 |
| 3HM - 3025 | 2600 | 30 | 22 | 320 | 260 | 30 | 7.5 |
| 3HM - 3525 | 2600 | 35 | 26 | 340 | 270 | 30 | 7.5 |
| 3HM - 4025 | 2600 | 40 | 30 | 380 | 310 | 30 | 7.5 |
| 3HM - 4525 | 2600 | 45 | 35 | 400 | 330 | 40 | 10 |
| 3HM - 5025 | 2600 | 50 | 38 | 420 | 350 | 40 | 10 |
| 3HM - 6025 | 2600 | 60 | 45 | 450 | 380 | 50 | 10 |
| 3HM - 0830 | 3100 | 8 | 5 | 200 | 160 | 10 | 3 |
| 3HM - 1030 | 3100 | 10 | 6 | 220 | 180 | 10 | 3 |
| 3HM - 1230 | 3100 | 12 | 8 | 240 | 200 | 15 | 3 |
| 3HM - 1630 | 3100 | 16 | 12 | 260 | 210 | 15 | 3 |
| 3HM - 2030 | 3100 | 20 | 15 | 300 | 240 | 20 | 5 |
| 3HM - 2530 | 3100 | 25 | 18 | 320 | 260 | 25 | 5 |
| 3HM - 3030 | 3100 | 30 | 22 | 350 | 280 | 30 | 7.5 |
| 3HM - 3530 | 3100 | 35 | 26 | 380 | 310 | 40 | 10 |
| 3HM - 4030 | 3100 | 40 | 30 | 400 | 320 | 40 | 10 |
| 3HM - 4530 | 3100 | 45 | 35 | 420 | 340 | 40 | 10 |
| 3HM - 5030 | 3100 | 50 | 38 | 450 | 380 | 50 | 15 |
| 3HM - 6030 | 3100 | 60 | 45 | 480 | 400 | 50 | 15 |

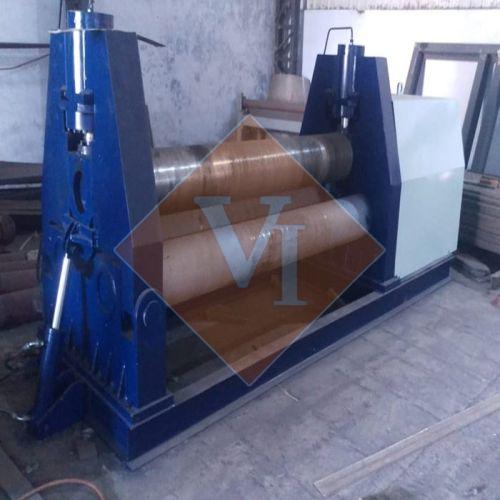

Looking for "Hydro Mechanical Plate Rolling Machine" ?
