Twitter| Business Type | Manufacturer, Exporter, Supplier |
| Finishing | Polished |
| Driven Type | Electric |
| Power | 3-6kw |
| Click to view more | |
Preferred Buyer From
| Location | Worldwide |
Product Details
Operating Type
Automatic
Usage
Industrial
Warranty
1 Year
Country of Origin
India

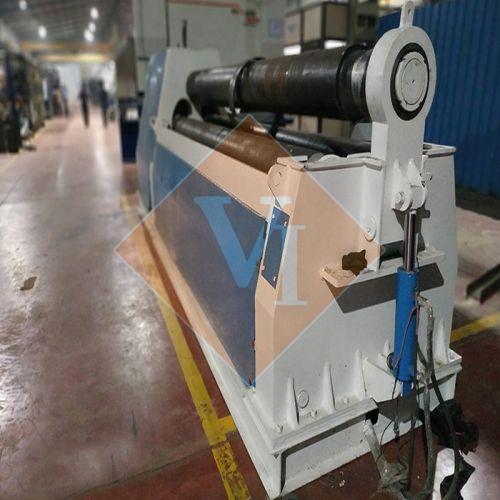

Three-roller machines (variable pitch aka variable geometry) have one pressing top roll and two pressing side rolls. The three-roll variable pitch works by having all three rolls able to move and tilt. The top roll moves in the vertical plane and the side rolls move on the horizontal plane. When rolling, the top roll presses the metal plate between the two side rolls. The advantage of having the variable three roll is the ability to roll many thicknesses and diameters of cylinders.
Specifications
| VH3 MODEL |
Working Roll Length | Bending Thickness | Pre-Bending Thickness | Top Roll Diameter | Bottom Rollers Diameter | Motor Power | Length | Height | Width |
| MM | MM | MM | MM | MM | HP | Machine Diemention (MM) | |||
| VH3 20/06 | 2100 | 6 | 4 | 160 | 140 | 3 | 3950 | 1160 | 1080 |
| VH3 20/08 | 2100 | 8 | 6 | 190 | 170 | 5 | 3950 | 1160 | 1080 |
| VH3 20/10 | 2100 | 10 | 8 | 210 | 190 | 10 | 3950 | 1160 | 1080 |
| VH3 20/12 | 2100 | 12 | 10 | 230 | 210 | 10 | 4030 | 1275 | 1370 |
| VH3 20/16 | 2100 | 16 | 12 | 270 | 250 | 15 | 4180 | 1385 | 1440 |
| VH3 20/20 | 2100 | 20 | 16 | 300 | 270 | 20 | 4440 | 1630 | 1620 |
| VH3 20/25 | 2100 | 25 | 20 | 330 | 300 | 20 | 4250 | 1850 | 1800 |
| VH3 20/30 | 2100 | 30 | 25 | 360 | 330 | 25 | 4500 | 2000 | 1900 |
| VH3 20/40 | 2100 | 40 | 30 | 390 | 360 | 30 | 4900 | 2200 | 2000 |
| VH3 20/50 | 2100 | 50 | 40 | 430 | 390 | 40 | 5200 | 2500 | 2200 |
| VH3 25/06 | 2600 | 6 | 4 | 190 | 170 | 5 | 4450 | 1160 | 1080 |
| VH3 25/08 | 2600 | 8 | 6 | 210 | 190 | 10 | 4450 | 1160 | 1080 |
| VH3 25/10 | 2600 | 10 | 8 | 230 | 210 | 10 | 4530 | 1300 | 1370 |
| VH3 25/12 | 2600 | 12 | 10 | 270 | 250 | 15 | 4680 | 1350 | 1450 |
| VH3 25/16 | 2600 | 16 | 12 | 300 | 270 | 15 | 5000 | 1650 | 1650 |
| VH3 25/20 | 2600 | 20 | 16 | 330 | 300 | 20 | 5000 | 1850 | 1850 |
| VH3 25/25 | 2600 | 25 | 20 | 360 | 330 | 25 | 4900 | 1950 | 1850 |
| VH3 25/30 | 2600 | 30 | 25 | 390 | 360 | 30 | 5400 | 2150 | 2000 |
| VH3 25/40 | 2600 | 40 | 30 | 430 | 390 | 40 | 6000 | 2250 | 2200 |
| VH3 30/06 | 3100 | 6 | 4 | 210 | 190 | 7.5 | 5000 | 1200 | 1100 |
| VH3 30/08 | 3100 | 8 | 6 | 230 | 210 | 10 | 5100 | 1300 | 1400 |
| VH3 30/10 | 3100 | 10 | 8 | 270 | 250 | 10 | 5200 | 1400 | 1500 |
| VH3 30/12 | 3100 | 12 | 10 | 300 | 270 | 15 | 5500 | 1700 | 1700 |
| VH3 30/16 | 3100 | 16 | 12 | 330 | 300 | 20 | 5700 | 1900 | 1900 |
| VH3 30/20 | 3100 | 20 | 16 | 360 | 330 | 20 | 5700 | 1900 | 1900 |
| VH3 30/25 | 3100 | 25 | 20 | 390 | 360 | 25 | 5900 | 2000 | 2100 |
| VH3 30/30 | 3100 | 30 | 25 | 430 | 390 | 30 | 6000 | 2200 | 2300 |
| VH3 30/40 | 3100 | 40 | 30 | 460 | 420 | 40 | 6200 | 2450 | 2400 |
| VH3 30/50 | 3100 | 50 | 40 | 510 | 460 | 50 | 6400 | 2800 | 2500 |
| VH3 40/06 | 4100 | 6 | 4 | 270 | 250 | 7.5 | 6200 | 1400 | 1500 |
| VH3 40/08 | 4100 | 8 | 6 | 300 | 270 | 10 | 6300 | 1700 | 1700 |
| VH3 40/10 | 4100 | 10 | 8 | 330 | 300 | 10 | 6400 | 1900 | 1900 |
| VH3 40/12 | 4100 | 12 | 10 | 360 | 330 | 15 | 6500 | 1900 | 1900 |
| VH3 40/16 | 4100 | 16 | 12 | 390 | 360 | 20 | 7000 | 2000 | 2150 |
| VH3 40/20 | 4100 | 20 | 16 | 430 | 390 | 20 | 7200 | 2200 | 2200 |
| VH3 40/25 | 4100 | 25 | 20 | 460 | 420 | 25 | 7300 | 2500 | 2350 |
| VH3 40/30 | 4100 | 30 | 25 | 510 | 460 | 30 | 7500 | 2800 | 2500 |
